Product Name: Fork sleeve Tyre Clamp

Tyre Clamp

• High safety performance is ensured for its two-way hydraulic rotation within 360°and self locking at any angle.
• A pressure retaining valve is equipped to avoid damage to the goods due to abrupt crack of oil pipe.
• Reasonable design and easy for maintenance.
• Compact structure and broad view.
• The e-shaped groove made of aluminum alloy reduces the dead weight of a product and increases a forklift’s service life.
• The fast-changing fork sleeve enables one forklift to possess two purposes.
• The selection of wearing strips of German Bayer’s material effectively prevents the guide axis and guide slot from abrasion.

Product Parameters

Inquiry

Product Parameters

It is applied to the carrying, loading, unloading and stacking tires of various large engineering machines to reduce work intensity and realize safe and efficient operation without the use of pallets.

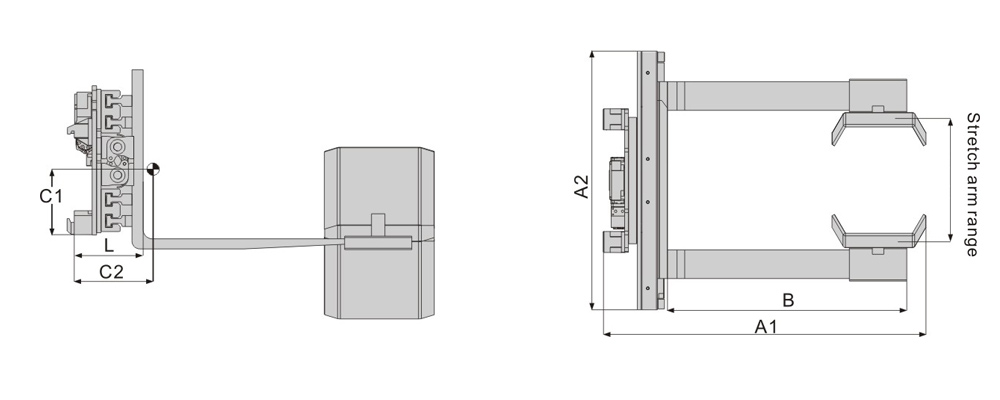

Model	Carrying Capacity	Frame dimension	Length of fork	Opening range	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Verticla Center Gravity
	Kg	A1×A2(mm)	(mm)	(mm)		Kg	L(mm)	C2(mm)	C1(mm)
TSC15A-D22C	1500	1450×1600	1050	600-2200	2	775	379	274	268
TSC15A-D22F	1500	1580×1600	1200	600-2200	2	786	379	276	270
TSC15A-D22H	1500	1730×1600	1350	600-2200	2	798	379	282	274
TSC15A-D22J	1500	1880×1600	1500	600-2200	2	810	379	288	279
TSC15A-D20F	1500	1580×1600	1200	550-2000	2/3	771	379	276	268
TSC15A-D20H	1500	1730×1600	1350	550-2000	2/3	783	379	282	272
TSC20A-D22C	2000	1453×1600	1050	600-2200	2/3	810	384	274	268
TSC20A-D22F	2000	1583×1600	1200	600-2200	2/3	823	384	276	270

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.Clamp and forward-tilting are added one more oil circuit each respectively.
3.A stands for standard, D, fork sleeve, C ,F,H and J ,fork length.
4.The various types listed above are the common products, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
